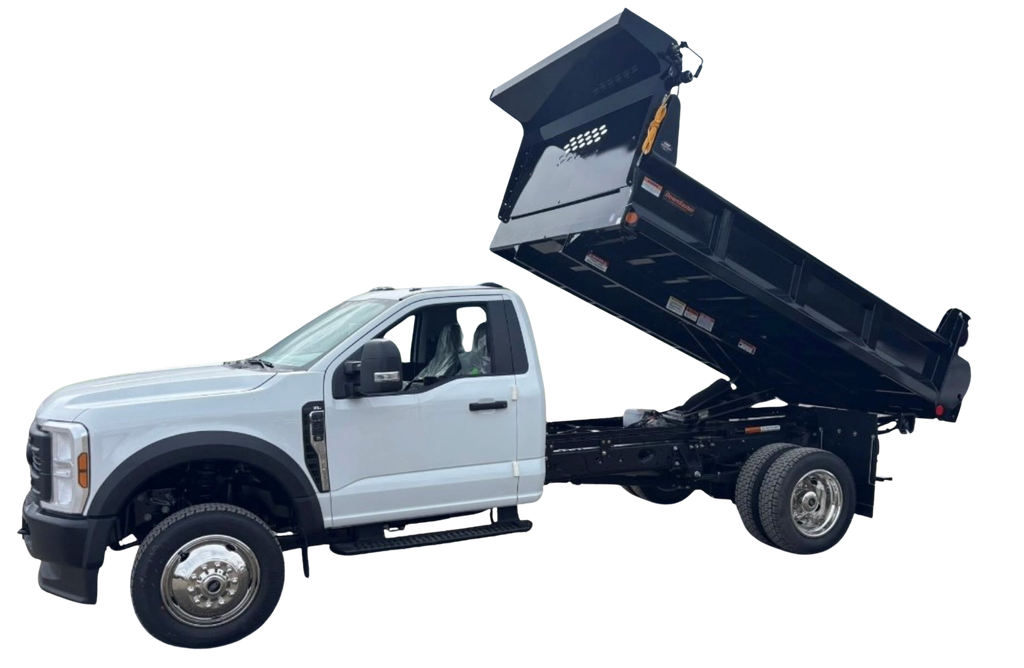

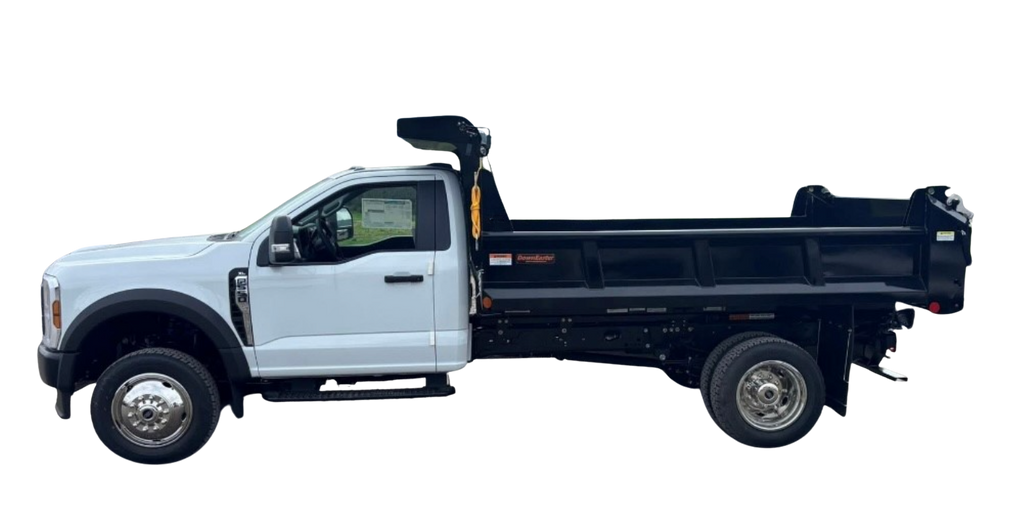

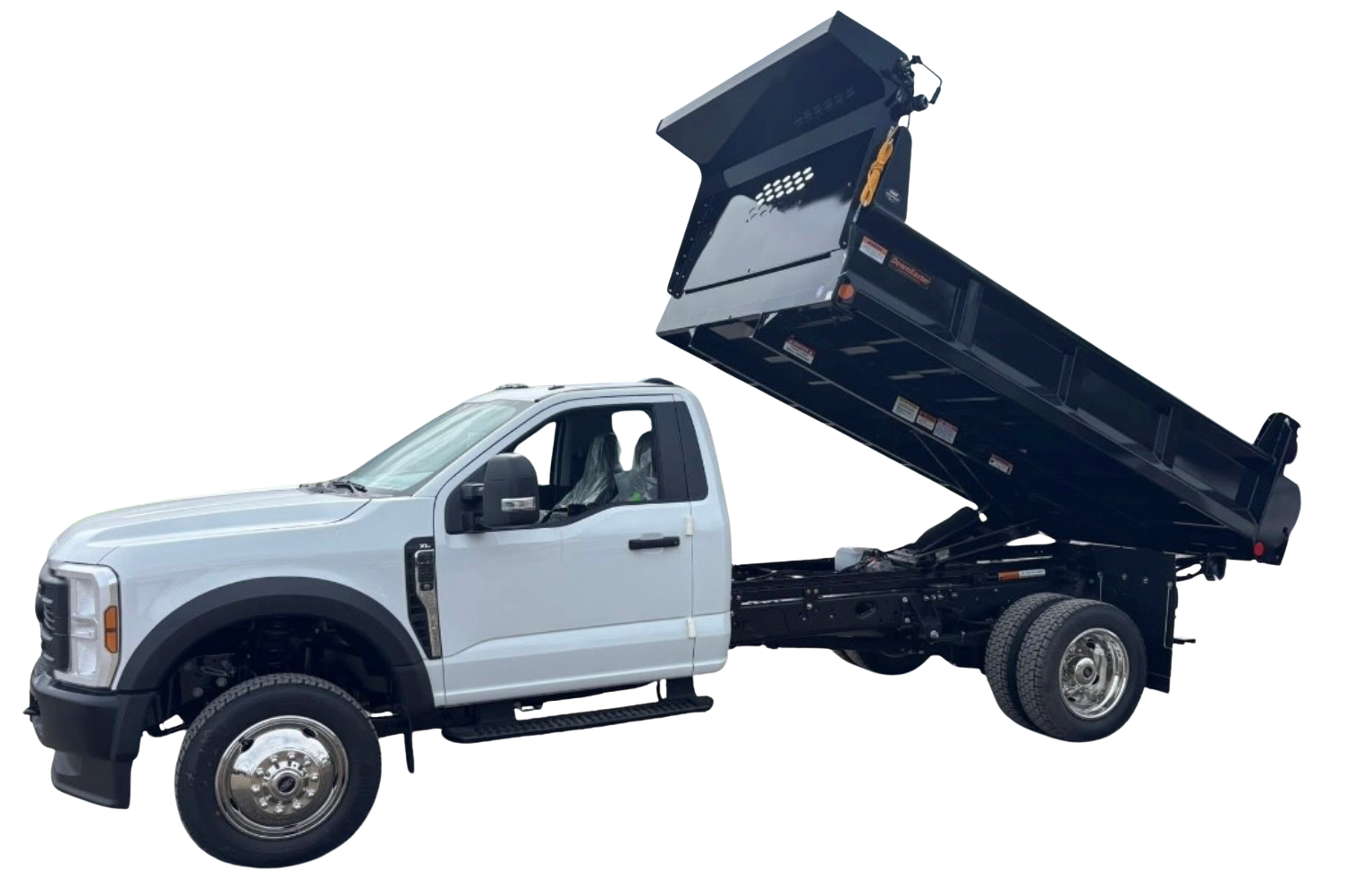

Downeaster 9'3" Steel Dump Body w/ 18" Sides
- Made for 60" CA trucks
- 8 Ton champion hoist
- Adjustable bolt on cab shield - 18" visor
- 10 gauge construction throughout
- Dirt shedding , sloped design at side plate and tailgate top
- Double panel side plates equal over 1/4" thickness.
- Full depth 3/16"rear corner pillars incorporate recessed lighting, keyhole banjo eyes and lower tailgate pin receiver.
- All lighting is LED rubber mounted and NTEA and Federal compliant.
- 2 1/2" shorter deck height (9′ only)
- Mounting height of 9.5" chassis to floor (9′ only)
- 10" board extension pockets ease of install & future optional / custom overhang.
- Self aligning rear latch release for the top gate pins
- Integrated tarp hooks
- Acid etched, phosphate washed, with corrosion resistant epoxy primer and then baked for a strong superior finish
- Weight: 1,800 Ibs
- DED09396-HD
Options
- Stainless steel body construction
- 3/16" flooring
- Manual tarp system
- 30" or 40" cab shield visor
- Coal chute installed on rear tailgate
- Call for pricing on installation
